MODerate resolution Imaging Spectroradiometer (MODIS)

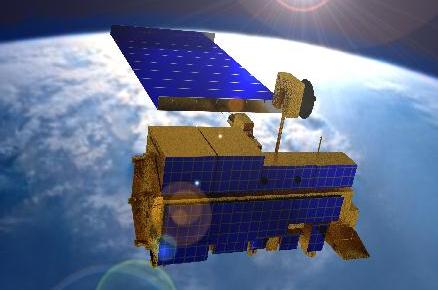

MODIS-Terra

Source: http://terra.nasa.gov, access on 28th, Apr. 2010

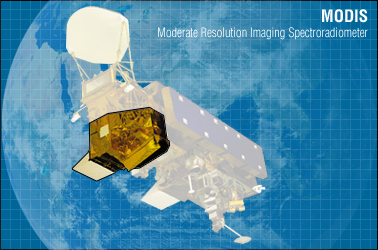

MODIS-Aqua

Source: http://aqua.nasa.gov, access on 28th, Apr. 2010

The MODIS instrument is a highly sensitive radiometer operating in 36 spectral bands ranging from 0.4μm to 14.4μm. Two bands are imaged at a nominal resolution of 250m at nadir, five bands at 500m, and the remaining 29 bands at 1km. MODIS is operating onboard Terra and Aqua. Terra was launched in December 1999 and Aqua in May 2002. A ±55° scanning pattern at 705km altitude achieves a 2,330km swath that provides global coverage every one to two days. Aqua has a 1:30am/pm equator crossing time while Terra has a 10:30am/pm equator crossing time, meaning that MODIS data is typically available on a daily basis. MODIS data are free of charge and can be accessed online. In general, the range of surface temperature values is dependent on the time of acquisition, and is greater for Aqua. The downscaling approaches based on optical data requires a strong coupling between surface temperature and surface soil moisture, which commonly occurs in areas where surface evaporation is not energy limited and when solar radiation is relatively high (usually between 11 am and 3 pm). Therefore MODIS on Aqua (1:30 pm) is more relevant than MODIS on Terra for downscaling purposes. MODIS coverage for the Murrumbidgee Catchment is summarised in the tables below. MODIS data can be downloaded from NASA.


Mission MODIS
Sensor Medium-resolution, multi-spectral, cross-track scanning radiometer
Spacecraft Terra Aqua
Launch date 18th, Dec. 1999 4th, May 2002
Design life (year) 6 6
Orbit Near-polar orbit. Cross the equator at 10:30 a.m.(descending node) Sun-synchronous, near-polar orbit at an altitude of 705 km. Cross the equator at local time ~1:30 p.m. (ascending node) and ~1:30 a.m. (descending).
Spacecraft Operations Control Centre NASA Goddard Space Flight Center
Center Frequency (GHz) 36 spectral bands; 21 within 0.4-3.0 μm; 15 within 3-14.5 μm.
Spatial resolution (km) Two bands are imaged at a nominal resolution of 250 m at nadir, with five bands at 500 m, and the remaining 29 bands at 1 km
Incidence Angle (°) ±55
Swath (km) 2330
Temporal resolution (day) 1~2

MODIS-Aqua overpass time

MODIS-Terra coverage for the Murrumbidgee Catchment during the first AACES campaign have been determined from a Fortran program based on NORAD data for 6th, Nov. 2009, and are summarized in the table below. Date and time are in UTC. Aircraft flights were assumed to be conducted at 7:45 for descending overpass and 20:35 for ascending overpass.

  : Transect flight within 6 hours   : Patch flight within 6 hours
: Fully covered : Partially covered

UTC Date Start UTC Time Duration (s) Flight Patch
1 2 3 4 5 6 7 8 9 10
2010/1/18 4:40:25 334
2010/1/18 15:42:21 356
2010/1/19 3:44:56 347
2010/1/19 14:47:42 317
2010/1/19 16:27:10 106 T00
2010/1/20 4:27:53 363
2010/1/20 15:30:03 359
2010/1/21 3:32:55 313
2010/1/21 5:12:20 134
2010/1/21 14:36:01 259 P01
2010/1/21 16:13:43 253 P01
2010/1/22 4:15:23 379
2010/1/22 15:17:44 361
2010/1/23 3:21:08 250
2010/1/23 4:59:11 256
2010/1/23 14:24:46 153
2010/1/23 16:00:55 315
2010/1/24 4:03:03 376
2010/1/24 15:05:32 356 P02
2010/1/25 3:10:04 94
2010/1/25 4:46:31 315
2010/1/25 15:48:23 347
2010/1/26 3:50:49 359
2010/1/26 14:53:28 335
2010/1/27 4:33:58 350
2010/1/27 15:36:01 358 P03
2010/1/28 3:38:43 334
2010/1/28 14:41:38 292
2010/1/28 16:20:07 199
2010/1/29 4:21:26 374
2010/1/29 15:23:43 360 P04
2010/1/30 3:26:48 288
2010/1/30 5:05:29 208
2010/1/30 14:30:08 215
2010/1/30 16:07:06 288
2010/1/31 4:09:01 381
2010/1/31 15:11:26 360
2010/2/1 3:15:14 197
2010/2/1 4:52:39 289
2010/2/1 15:54:27 333 T01
2010/2/2 3:56:44 369
2010/2/2 14:59:18 348
2010/2/3 4:40:04 334
2010/2/3 15:41:59 356
2010/2/4 3:44:34 348
2010/2/4 14:47:20 317
2010/2/4 16:26:50 102
2010/2/5 4:27:32 363
2010/2/5 15:29:41 359
2010/2/6 3:32:33 314
2010/2/6 5:12:00 130
2010/2/6 14:35:38 261 P05
2010/2/6 16:13:22 251 P05
2010/2/7 4:15:02 379
2010/2/7 15:17:23 360
2010/2/8 3:20:46 252
2010/2/8 4:58:51 254
2010/2/8 14:24:23 156
2010/2/8 16:00:34 314
2010/2/9 4:02:41 377
2010/2/9 15:05:10 356 P07
2010/2/10 3:09:40 100
2010/2/10 4:46:10 314
2010/2/10 15:48:01 347
2010/2/11 3:50:27 360
2010/2/11 14:53:06 336 P06
2010/2/12 4:33:37 350
2010/2/12 15:35:39 359
2010/2/13 3:38:21 335
2010/2/13 14:41:16 293
2010/2/13 16:19:46 197
2010/2/14 4:21:05 373
2010/2/14 15:23:21 360 P08
2010/2/15 3:26:26 289
2010/2/15 5:05:09 206
2010/2/15 14:29:45 217
2010/2/15 16:06:45 287
2010/2/16 4:08:40 380
2010/2/16 15:11:04 360
2010/2/17 3:14:52 199
2010/2/17 4:52:18 288
2010/2/17 14:19:16 18
2010/2/17 15:54:05 333 P09
2010/2/18 3:56:23 369 P10
2010/2/18 14:58:56 348
2010/2/19 4:39:43 333
2010/2/19 15:41:38 355 T02
2010/2/20 3:44:12 349
2010/2/20 14:46:58 318
2010/2/20 16:26:31 97
2010/2/21 4:27:11 362
2010/2/21 15:29:19 360

MODIS-Terra overpass time

MODIS-Terra coverage for the Murrumbidgee Catchment during the first AACES campaign have been determined from a Fortran program based on NORAD data for 6th, Nov. 2009, and are summarized in the table below. The date and time are UTC time. Aircraft flights were assumed to be conducted at 7:45 for descending overpass and 20:35 for ascending overpass.

  : Transect flight within 6 hours   : Patch flight within 6 hours
: Fully covered : Partially covered

UTC Date Start UTC Time Duration (s) Flight Patch
1 2 3 4 5 6 7 8 9 10
2010/1/18 0:22:41 359
2010/1/18 12:25:33 312
2010/1/18 14:04:55 139
2010/1/18 23:28:39 258
2010/1/19 1:06:20 254
2010/1/19 13:08:01 379
2010/1/20 0:10:22 361 T00
2010/1/20 12:13:47 247
2010/1/20 13:51:48 258
2010/1/20 23:17:24 152
2010/1/21 0:53:32 316
2010/1/21 12:55:40 376
2010/1/21 23:58:09 356 P01
2010/1/22 12:02:45 84
2010/1/22 13:39:08 315
2010/1/23 0:40:59 348
2010/1/23 12:43:26 358
2010/1/23 23:46:06 334
2010/1/24 13:26:35 351
2010/1/25 0:28:37 359 P02
2010/1/25 12:31:20 333
2010/1/25 23:34:15 291
2010/1/26 1:12:42 202
2010/1/26 13:14:02 374
2010/1/27 0:16:19 360
2010/1/27 12:19:25 286
2010/1/27 13:58:03 212
2010/1/27 23:22:45 214 P03
2010/1/28 0:59:41 290 P03
2010/1/28 13:01:37 380
2010/1/29 0:04:02 359
2010/1/29 12:07:52 192
2010/1/29 13:45:13 292
2010/1/30 0:47:02 334 P04
2010/1/30 12:49:20 368
2010/1/30 23:51:53 348
2010/1/31 13:32:38 335
2010/2/1 0:34:34 356
2010/2/1 12:37:09 347
2010/2/1 23:39:56 315 T01
2010/2/2 1:19:21 110 T01
2010/2/2 13:20:05 364
2010/2/3 0:22:15 359
2010/2/3 12:25:08 312
2010/2/3 14:04:30 139
2010/2/3 23:28:14 257
2010/2/4 1:05:54 254
2010/2/4 13:07:35 379
2010/2/5 0:09:56 361
2010/2/5 12:13:21 247
2010/2/5 13:51:22 258
2010/2/5 23:16:59 150
2010/2/6 0:53:06 316
2010/2/6 12:55:14 376
2010/2/6 23:57:43 355 P05
2010/2/7 12:02:20 81
2010/2/7 13:38:41 316
2010/2/8 0:40:32 348
2010/2/8 12:42:59 359
2010/2/8 23:45:39 334
2010/2/9 13:26:07 352
2010/2/10 0:28:10 359 P07
2010/2/10 12:30:53 332
2010/2/10 23:33:48 290
2010/2/11 1:12:14 203
2010/2/11 13:13:34 374
2010/2/12 0:15:51 360 P06
2010/2/12 12:18:58 284
2010/2/12 13:57:35 213
2010/2/12 23:22:18 212
2010/2/13 0:59:13 290
2010/2/13 13:01:09 380
2010/2/14 0:03:33 360
2010/2/14 12:07:24 191
2010/2/14 13:44:44 292
2010/2/15 0:46:33 334 P08
2010/2/15 12:48:51 368
2010/2/15 23:51:24 347
2010/2/16 13:32:09 335
2010/2/17 0:34:04 356
2010/2/17 12:36:40 347
2010/2/17 23:39:26 315 P09
2010/2/18 1:18:49 114 P09
2010/2/18 13:19:35 364 P10
2010/2/19 0:21:45 359
2010/2/19 12:24:38 312
2010/2/19 14:03:59 141
2010/2/19 23:27:44 257 T02
2010/2/20 1:05:23 255 T02
2010/2/20 13:07:05 379
2010/2/21 0:09:25 361
2010/2/21 12:12:51 246
2010/2/21 13:50:51 259
2010/2/21 23:16:28 149
