Soil Moisture Sampling

For logistical reasons, the AACES study area had been divided into 10 patches. AACES-2 focused on the central half of the transect (P04-P08) with each patch being the focus of a single day of ground monitoring and coincident aircraft/SMOS coverage. A total of 6 focus farms had been selected across the AACES-2 study area to provide ground truth for several 1km resolution PLMR pixels along the flight track.

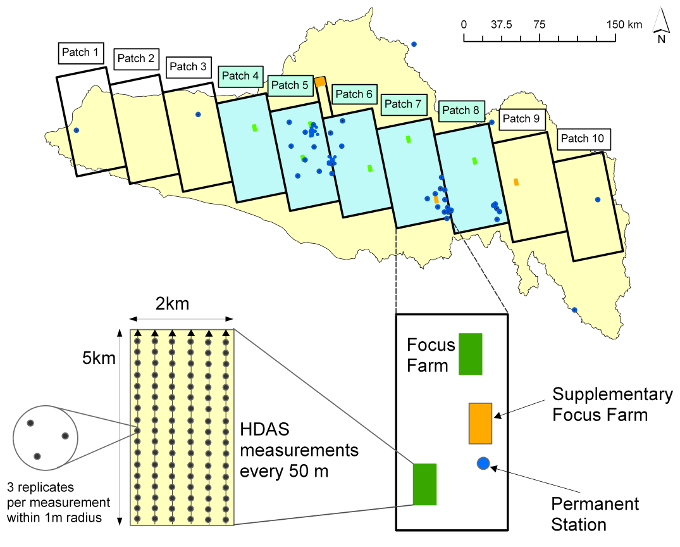

Schematic of HDAS soil moisture sampling strategy

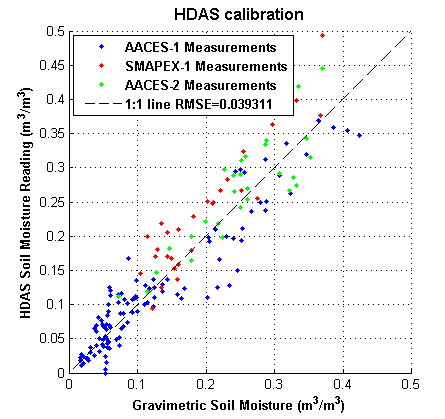

Within each of the flight patches focus areas of 2km × 5km size (oriented along the direction of flight lines) had been established and subdivided by six ground sampling transect lines, each 5km in length and 330m apart. The ground teams made three surface soil moisture measurements (within a radius of 1m) every 50m along these transects using the Hydraprobe Data Acquisition System (HDAS). This allows the effect of random errors in local scale soil moisture measurements to be minimised. To facilitate comparisons between SMOS, airborne observations, and the detailed ground measurements, ground soil moisture sampling took place from 5-9am. The soil moisture calibration equation for the HDAS system has been confirmed during the AACES-1, SMAPEX-1, and AACES-2 campaigns.

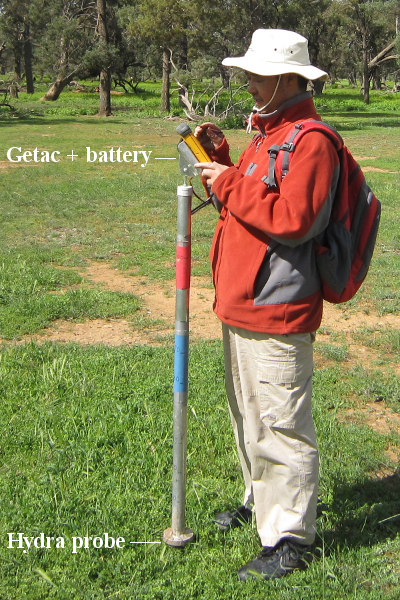

Hydraprobe Data Acquisition System (HDAS)

In addition to the collected soil moisture data, a number of further ancillary information has been entered and recorded in the HDAS system for each sampling site. This information includes:

  • land cover type
  • vegetation canopy height
  • a visual observation of dew presence and characteristics
  • a visual estimate of surface rock cover fraction

HDAS soil moisture measurements

The soil moisture data that has been collected at each focus farm is shown as overview below. Users can download the data of the corresponding patch via the Download Centre

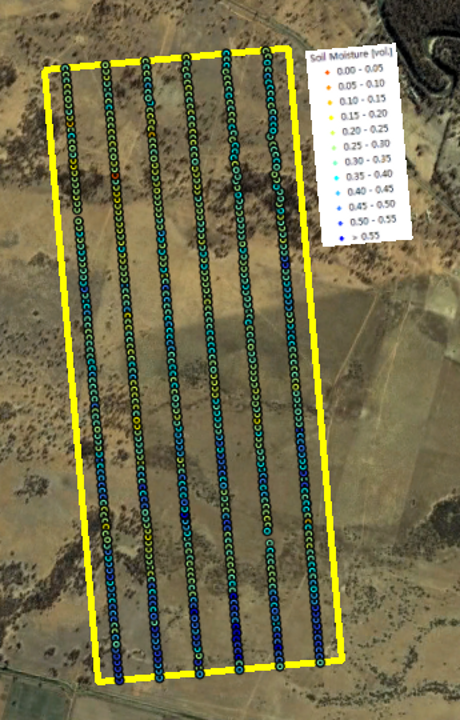

Patch 05 (Transect 00)

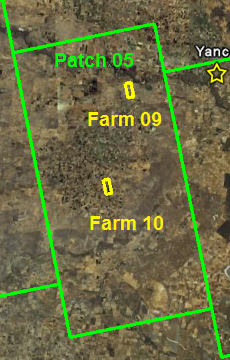

Patch 05
Source: GoogleEarth, accessed on 22nd, Sep. 2010.
Farm 09

Back to the list

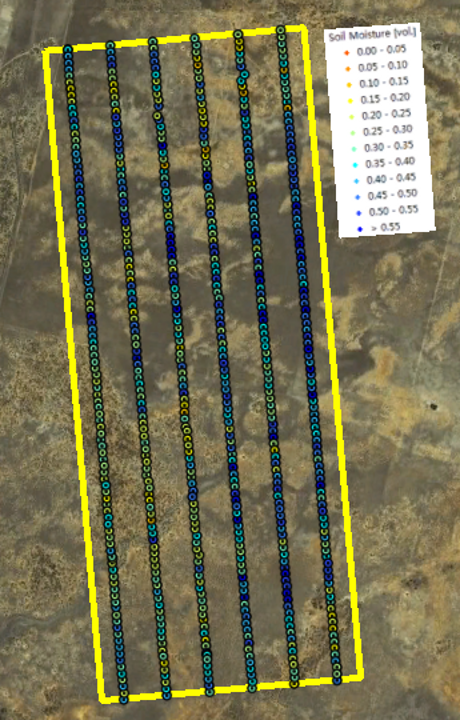

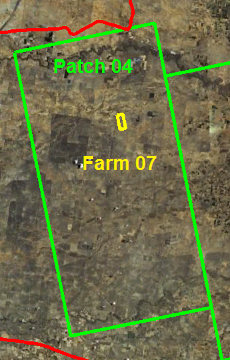

Patch 04

Patch 04
Source: GoogleEarth, accessed on 22nd, Sep. 2010.
Farm 07

Back to the list

Patch 05

Patch 05
Source: GoogleEarth, accessed on 22nd, Sep. 2010.

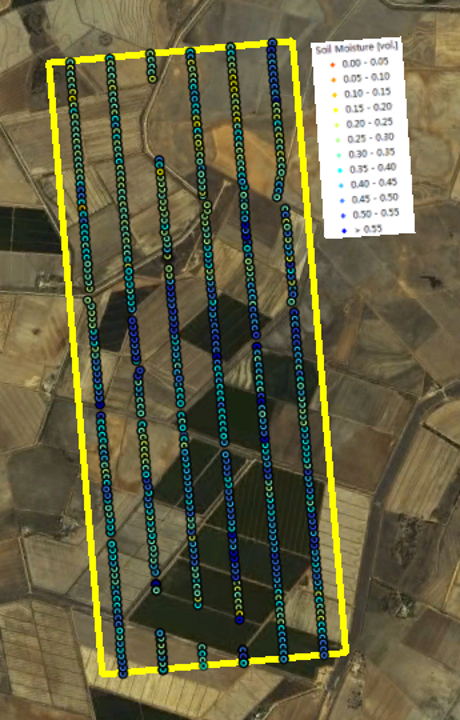

Farm 10

Back to the list

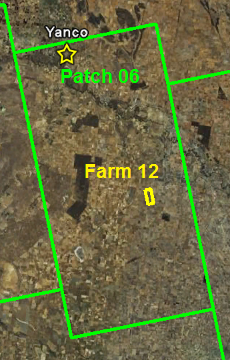

Patch 06

Patch 06
Source: GoogleEarth, accessed on 22nd, Sep. 2010.

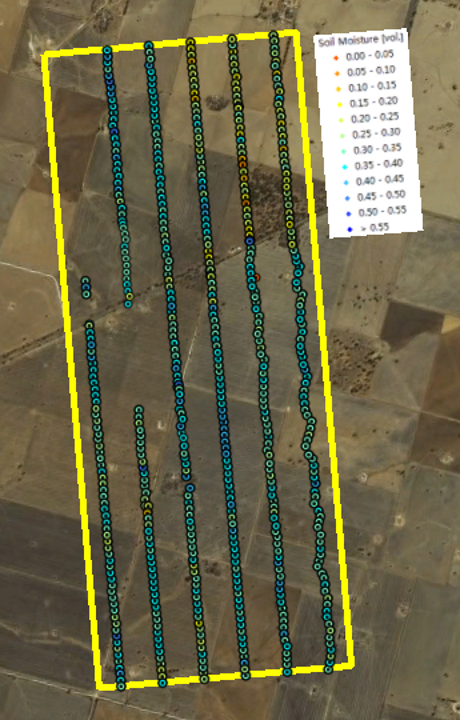

Farm 12

Back to the list

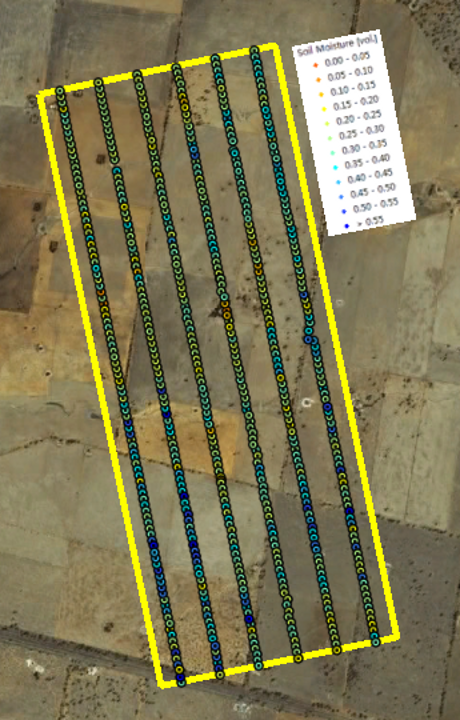

Patch 07

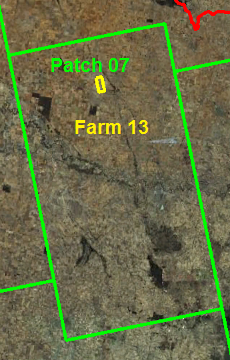

Patch 07
Source: GoogleEarth, accessed on 22nd, Sep. 2010.
Farm 13

Back to the list

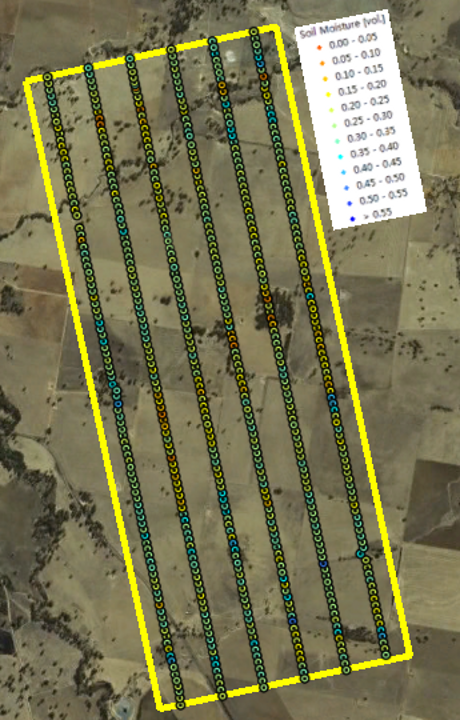

Patch 08

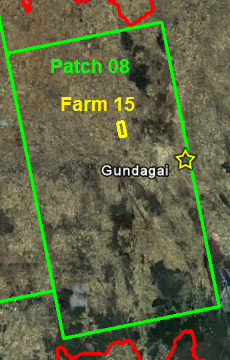

Patch 08
Source: GoogleEarth, accessed on 22nd, Sep. 2010.
Farm 15

Back to the list

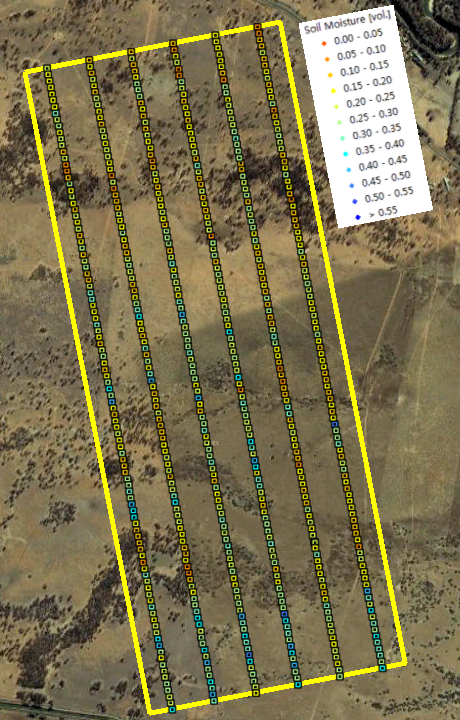

Patch 05 (Transect 01)

Patch 05
Source: GoogleEarth, accessed on 22nd, Sep. 2010.
Farm 09

Back to the list
