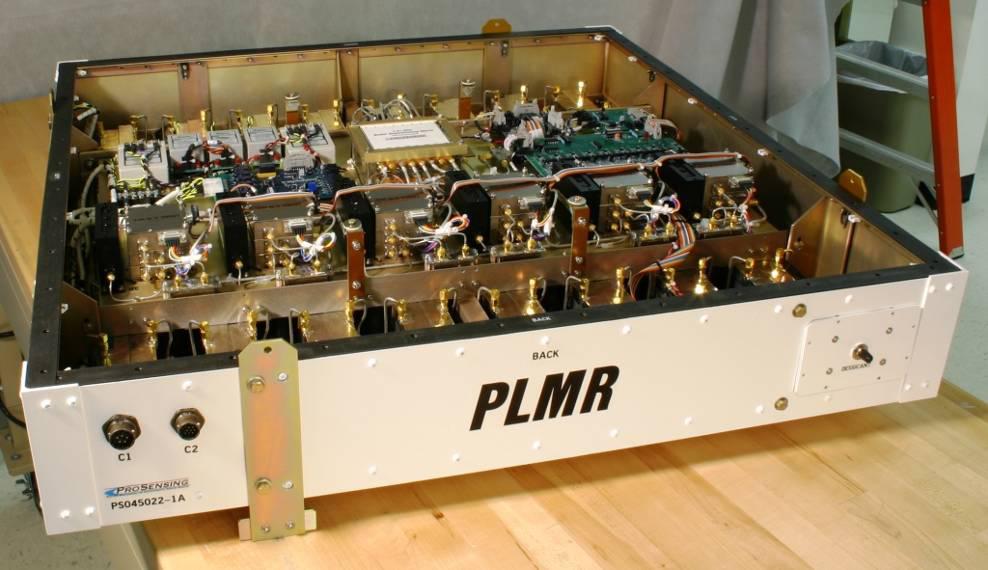

Polarimetric L-band Multibeam Radiometer (PLMR)

Polarimetric L-band Multibeam Radiometer (PLMR)

The Polarimetric L-band Multibeam Radiometer (PLMR) measures both V and H polarisations using a single receiver with polarisation switch at incidence angles ±7°, ±21.5° and ±38.5° in either across-track (pushbroom) or along-track configuration. In the normal pushbroom configuration the 3dB beamwidth is 17° along-track and 14° across-track resulting in an overall 90° across track field of view. The instrument has a frequency of 1.413GHz and band width of 24MHz, with specified NEDT and an accuracy better than 1K for an integration time of 0.5s, and 1K repeatability over 4 hours.

Sensor Polarimetric L-band Multibeam Radiometer
Center frequency (GHz) 1.413 (L-band; 21cm)
Band width (MHz) 24
Polarisation H & V (polarimetric mode optional)
Integration time (s), 0.5
Incidence angle (°) ±7, ±21.5, ±38.5
Beam width 3dB beamwidth is 17° along track and 14° across track resulting in an overall 90° across track field of view.
Radiometric resolution (K) < 1
Weight (kg) 46
Dimension (cm) 91.5 × 91.5 × 17.25

PLMR observations

During AACES-2, a total of five patch flights (P04 - P08) and two transect flights (T00 - T01) were carried out. Airborne, dual-polarized brightness temperature observations of all patch flights (P04 - P08) and transect flights (T00 and T01) are shown as an example below. All brightness temperature data can be downloaded via the Download Centre.

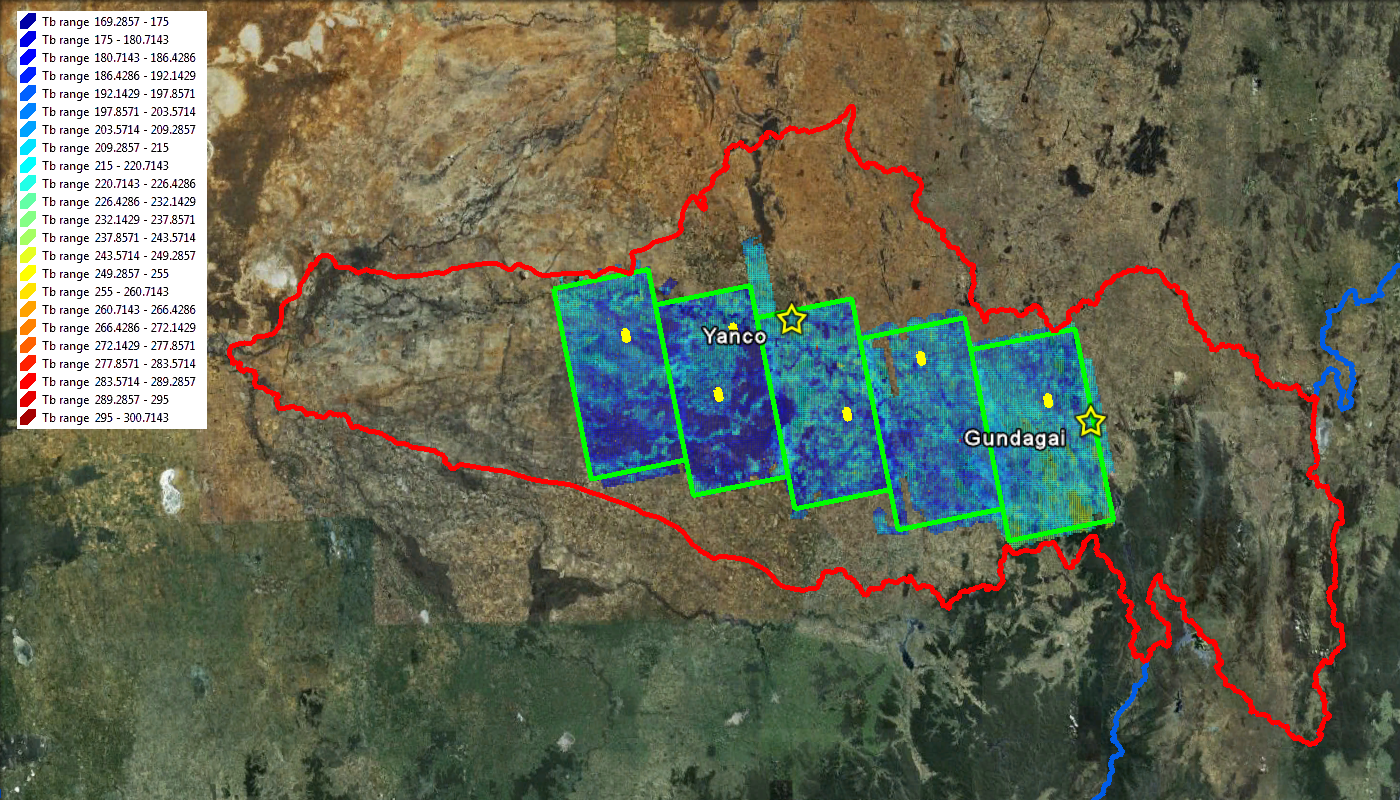

H polarized TB data over 5 patches (P04 - P08)

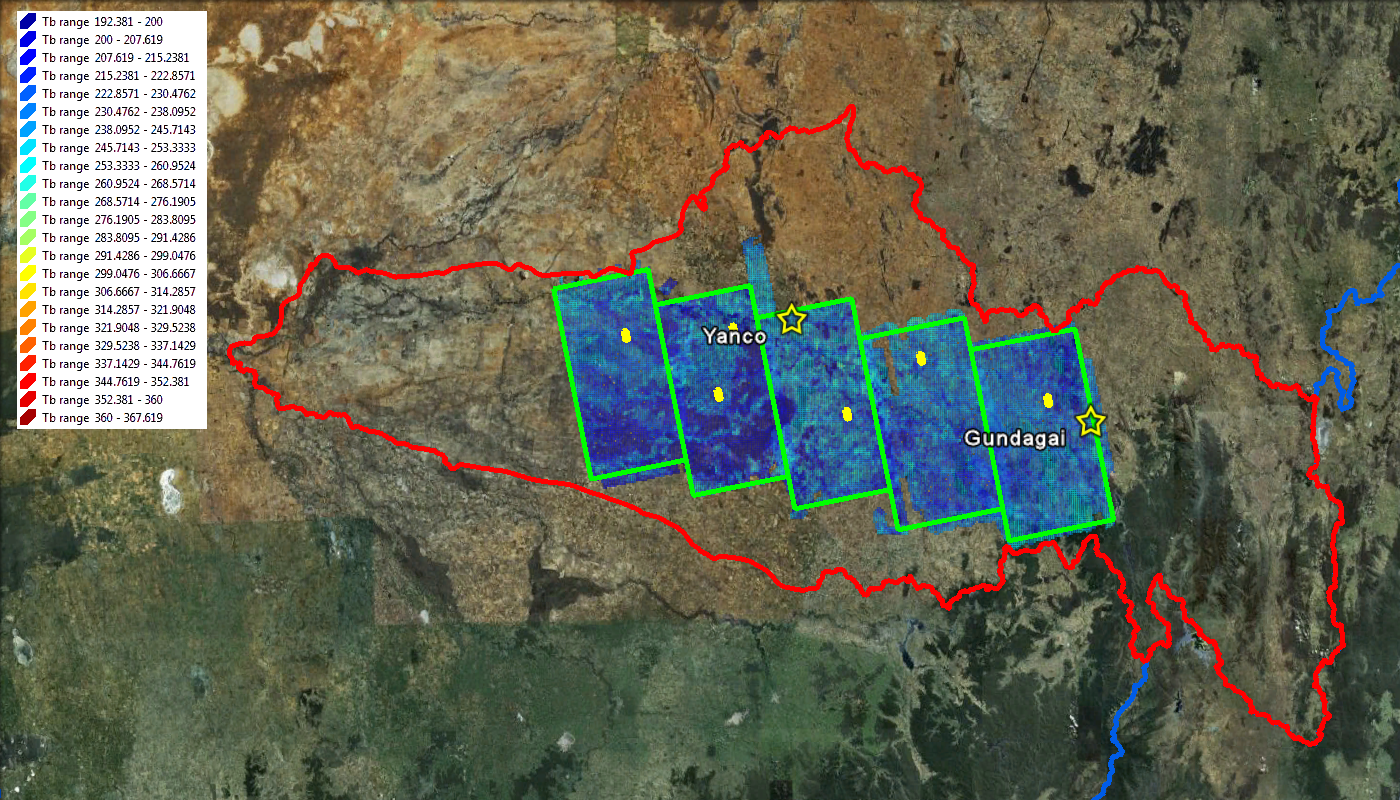

V polarized TB data over 5 patches (P04 - P08)

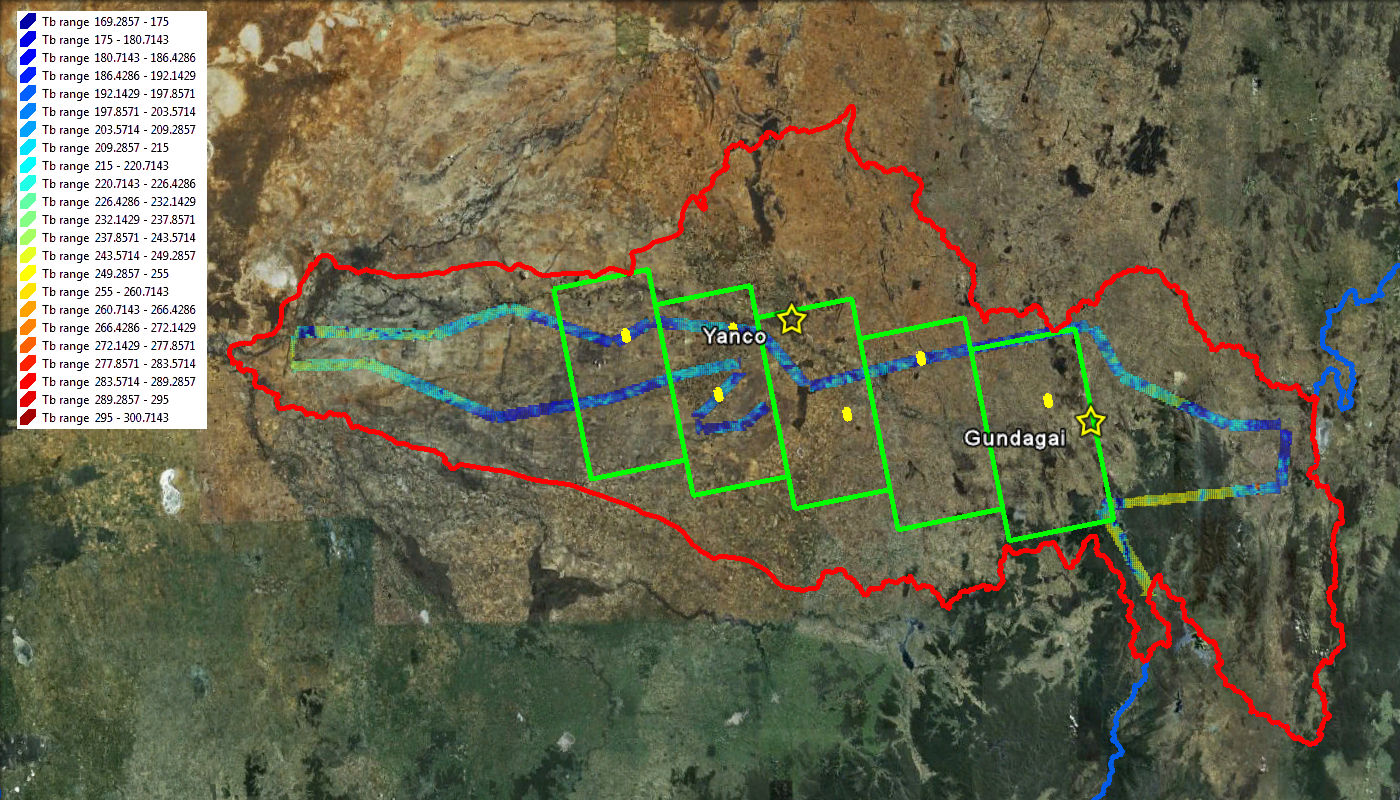

H polarized TB data over the whole transect (T00)
V polarized TB data over the whole transect (T00)
H polarized TB data over the whole transect (T01)

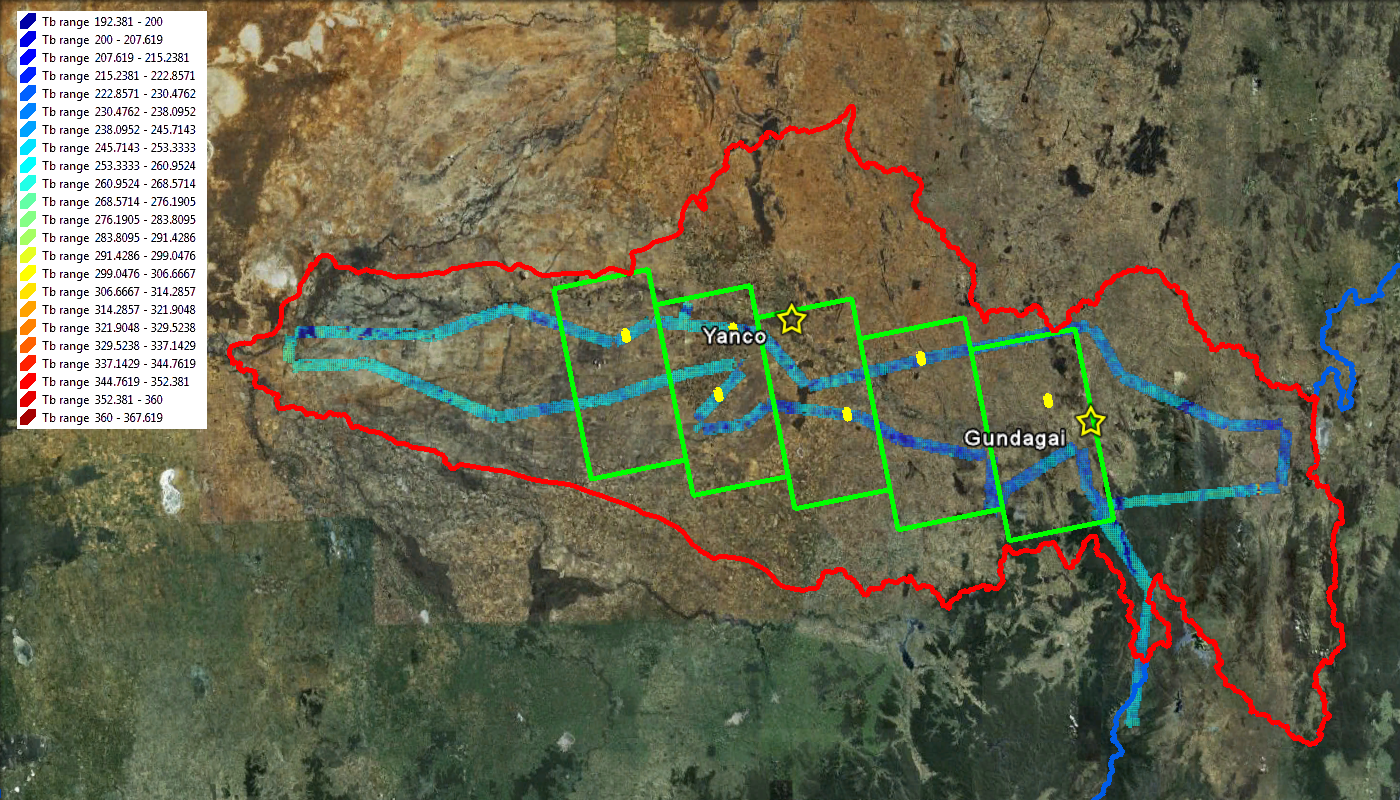

V polarized TB data over the whole transect (T01)
